Segmented pre-heater with pre-burner


This test is a repeat of the December test (linked here) to verify the segmented-preburning-preheater success was not a fluke.

  • Stats:
  • Result: 7 Second burn, M-850

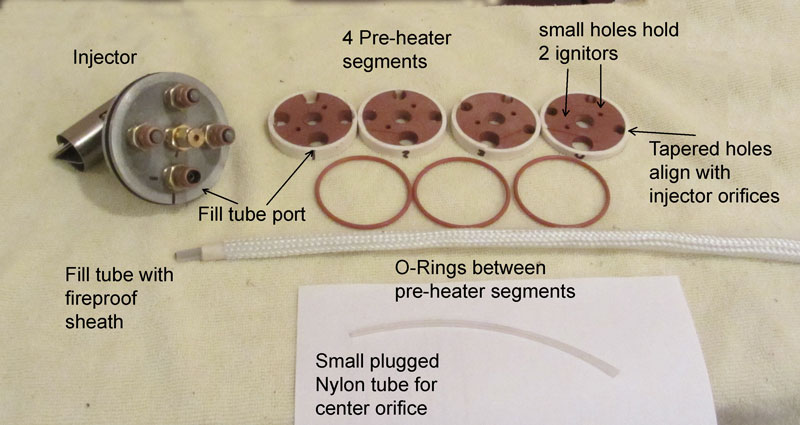

    Ignitor and Pre-heater

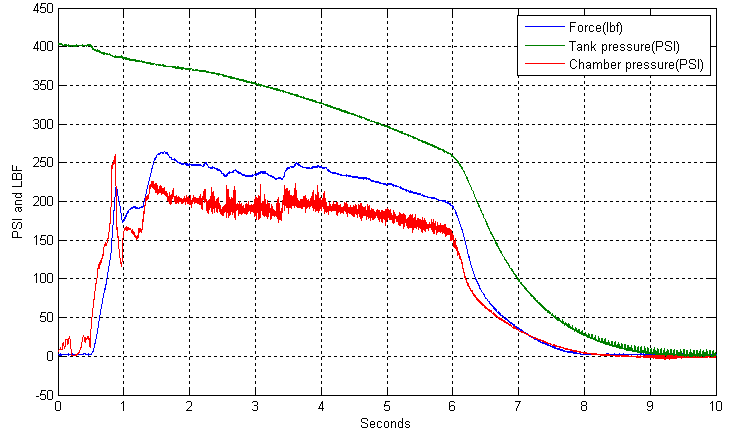

    Results and Video






    According to thrust_curve_tool this is an
    M-850
    7 second burn
    6,000 N-sec


    Comment

    Looks good. The motor came up to pressure quickly and cleanly. The difference in performance from December is the use of a dip tube in the previous test to conserve Nitrous. No dip tube was used this time.

    Time to fly!
