Horizontal Rocket Motor Teststand

Goals:

  1. Scaleable to support 1.5" to 6" diameter motors.
  2. Hybrid and solid
  3. Portable
  4. Lightweight and quick setup

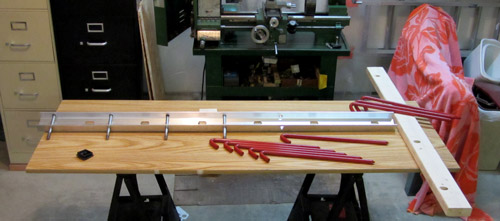

The Skeleton


  • 4" U-Channel
  • 5/8" x 20" steel anchoring rods. (in red)
  • 2x4 in front of the stand

    The test stand

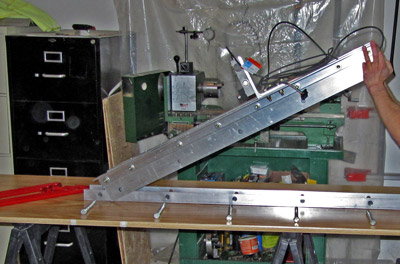

    The test stand itself bolts to the skeleton. Bolts are 1/2" grade 8 hardened steel.

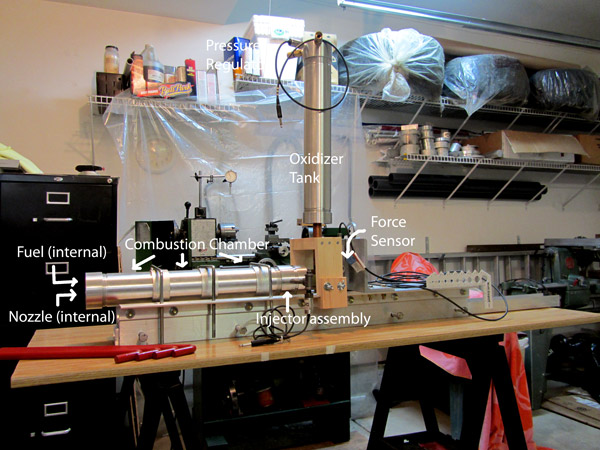

    Fully Assembled with N2O hybrid rocket motor attached
